Specification Data Sheet

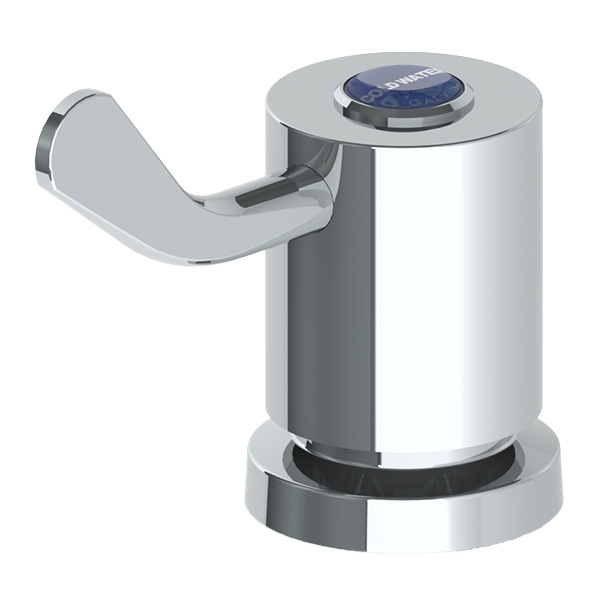

The CliniLever® product range is primarily used for hand washing applications in hospitals, aged care facilities, schools and in-home care. Our highly sought after lever design is easily operated with elbows or wrist to avoid hand contact. The CliniLever® Top Assemblies are designed to screw directly into any standard basin/sink body.

Features

  • Suitable for retro fit to existing wall breach
  • Contra-rotating handles for easy use
  • Smooth round design to facilitate easy cleaning and help reduce dirt and bacterial growth
  • High quality chrome finish for easy cleaning and hygiene maintenance
  • Australian Made; therefore, spare parts and support are available locally, reducing maintenance and downtime costs

Technical Information

  • WaterMark: AS/NZS 3718 Lic. WMKA0034
  • Inlet: 5/8" BSP - Male
  • Headworks: Jumper Valve
  • Working Pressure Range: Min 50 - Max 500
  • Working Temperature: Min 5 - Max 65
  • Construction: Lead Safe™ DZR Brass*
  • Finish: Chrome

Spare Parts

  • 46856 CliniLever® CP-BS 80mm Hospital Basin/WTA Handle & Button - Hot, Cold or Warm
  • 46777 CliniLever® Hospital Surgical Lever Action Indicator Button Only (Blue) Cold

Alternative Product Options

  • 102.19.22.01 CliniLever® CP-BS Lead Safe™ Basin/Sink Top Assembly 80 C/D Cold
  • 102.19.22.02 CliniLever® CP-BS Lead Safe™ Basin/Sink Top Assembly 80 C/D Hot
  • 102.19.12.01 CliniLever® CP-BS Lead Safe™ Basin/Sink Top Assembly 80 J/V - Cold
  • 102.19.12.02 CliniLever® CP-BS Lead Safe™ Basin/Sink Top Assembly 80 J/V - Hot

Superseding Products

  • TCBTJ80CC CliniLever® CP-BS Basin/Sink Top Assembly 80 J/V Cold

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.

Our Lead Safe™ product range is compliant with the Lead Free Requirements of the NCC 2022 Vol. Three, Clause A5G4(2) and NSF/ANSI 372.
