Specification Data Sheet

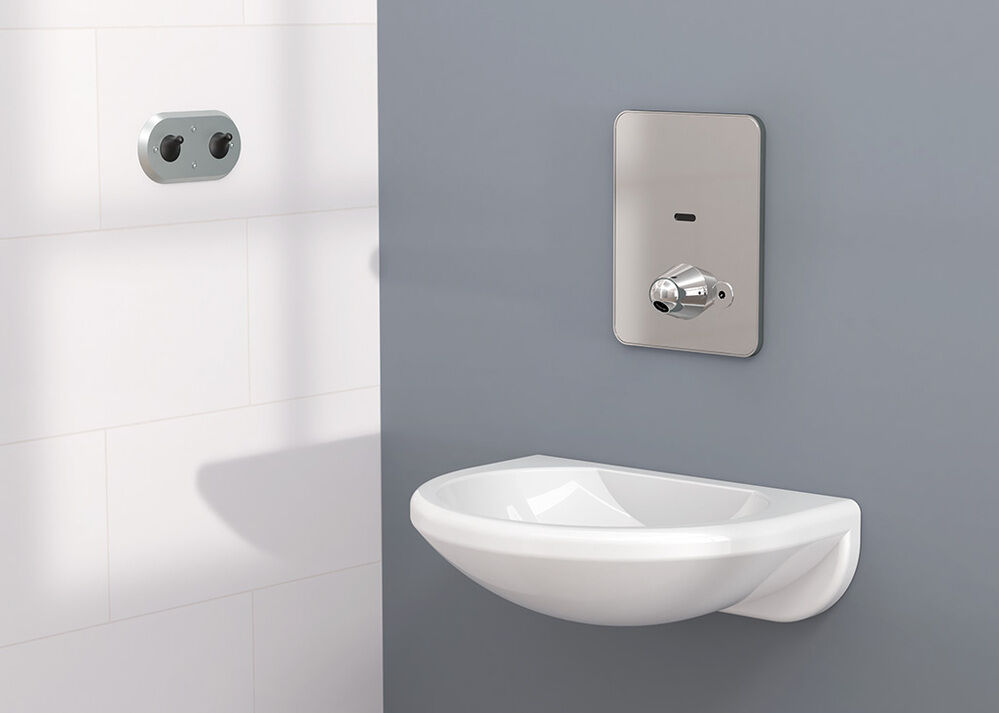

Galvin CliniMix® Lead Safe™ CMV2 Wall Mounted Handsfree POU, Wave On/Off, Mains, Chrome Face Plate with Anti-ligature Outlet is suitable for a range of applications, providing state-of-the-art features to comply with the latest healthcare requirements. Suitable for high and low pressure systems. The proximity sensor will activate when a users hands are in the set detection area.

Features

  • Front access for commissioning, servicing and disinfection
  • Easy front of wall thermal disinfection with minimal patient interruptions thanks to:
    • no adjustment or resetting of valve required
    • inbuilt thermal disinfection facility for manual flush
    • access via key control port on faceplate
  • Multiple time cycle options are adjustable on-site allowing full flexibility to suit user requirements
  • NCC 2022 Vol 3, Clause A5G4(2) ‘lead free requirements’ compliant
  • Smooth anti-ligature outlet
  • Consists of inwall box and front of wall finishing kit
  • Enables water to be mixed closer to the point of discharge, reducing risk of Legionella
  • Provides stable mixed temperature and rapid shut down in the event of cold/hot water supply failure keeping patients safe
  • Galvin Engineering Smart TMV Monitoring and Dead Leg Detection System compatible option available


Technical Information

  • WaterMark: AS 4032.4 Lic. WMKA21989
  • Inlet: 3/4" CU Tube
  • Outlet: Flow Straightener
  • Headwork: Thermostatic Mixing Valve (TMV)
  • Working Pressure Range (kPa): 30 Min - 500 Max
  • Permitted Supply Pressure Variation: 10:1
  • Mixed Temperature Range (°C):5 Min - 80 Max
  • Factory Set Thermostatic Temperature (°C): 41

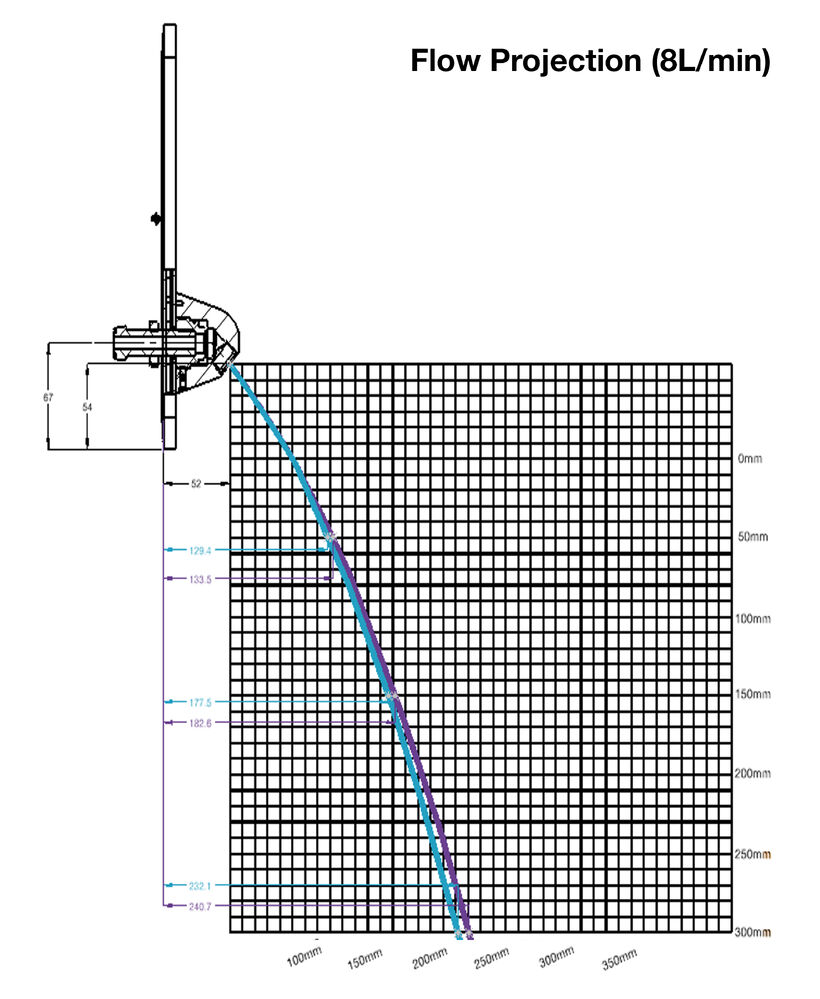

  • Nominal Flow Rate (LPM): 8
  • Construction: Lead Safe™ DZR Brass
  • Finish: Chrome

Optional Extras

  • 100101 CliniMix® Disinfection Key for CMV2
  • 100102 CliniMix® Lead Safe™ Flushing Kit for CMV2

Spare Parts

  • 100.91.40.22 BS Lead Safe™ Isolating Valve for CMV2 Cold Inlet - Blue
  • 100.91.40.21 BS Lead Safe™ Isolating Valve for CMV2 Hot Inlet - Red
  • 100.91.20.20 CliniMix® BS Lead Safe™ Service Cartridges for CMV2 Low Flow (Pair)
  • 100.91.10.20 CliniMix® BS Lead Safe™ Thermostatic Cartridge Assembly for CMV2 Low Flow with Plastic Ring
  • 100.91.00.34 Plastic Lock Ring for CMV2 Cartridge - Black

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.

Our Lead Safe™ product range is compliant with the Lead Free Requirements of the NCC 2022 Vol. Three, Clause A5G4(2) and NSF/ANSI 372.

In the absence of a legal or industry definition of anti-ligature or ligature resistant products, when we use these terms, we are referring to products that are designed and manufactured with the intention of reducing the risk of ligature attachment to the product(s). Galvin Engineering Pty Ltd will always endeavour to design and test our anti-ligature product(s) to reduce the risk of product ligature attachment that may result in serious injury or death. Whilst all reasonable measures are taken at the time of design, the anti-ligature design of the products are not intended to and will not:
a. Replace protective measures that need to be taken in the specific circumstances of usage;
b. Substitute the need for supervision of those who may be at risk;
c. Protect and or prevent those at risk against any self-harm instances that may occur when installed; and
d. Protect and or prevent injury when the risks where unknown to us at the time of the design of the product(s).
Galvin Engineering Pty Ltd does not offer and does not represent or warrant that any product(s) for sale are ligature-free. Therefore, Galvin Engineering will not be liable for any claims, loss, or damages arising from ligature attachment on our products. It is the purchaser's responsibility to ensure that products purchased and installed are suitable for the environments in which they are installed, and suitable supervision and protective measures are in place to protect those at risk.
