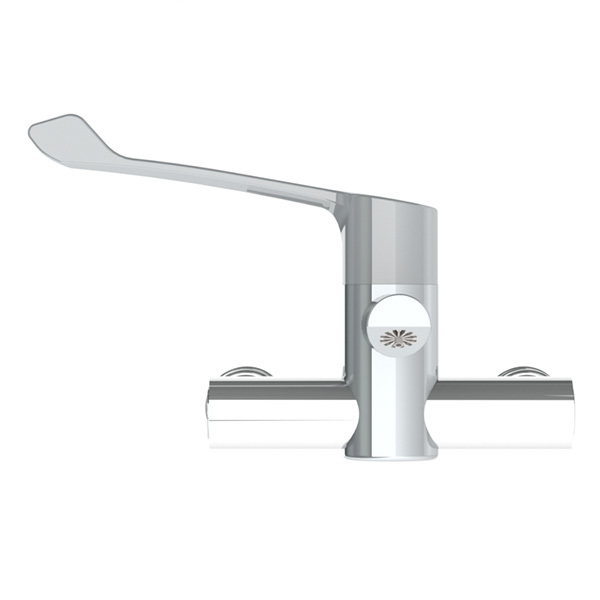

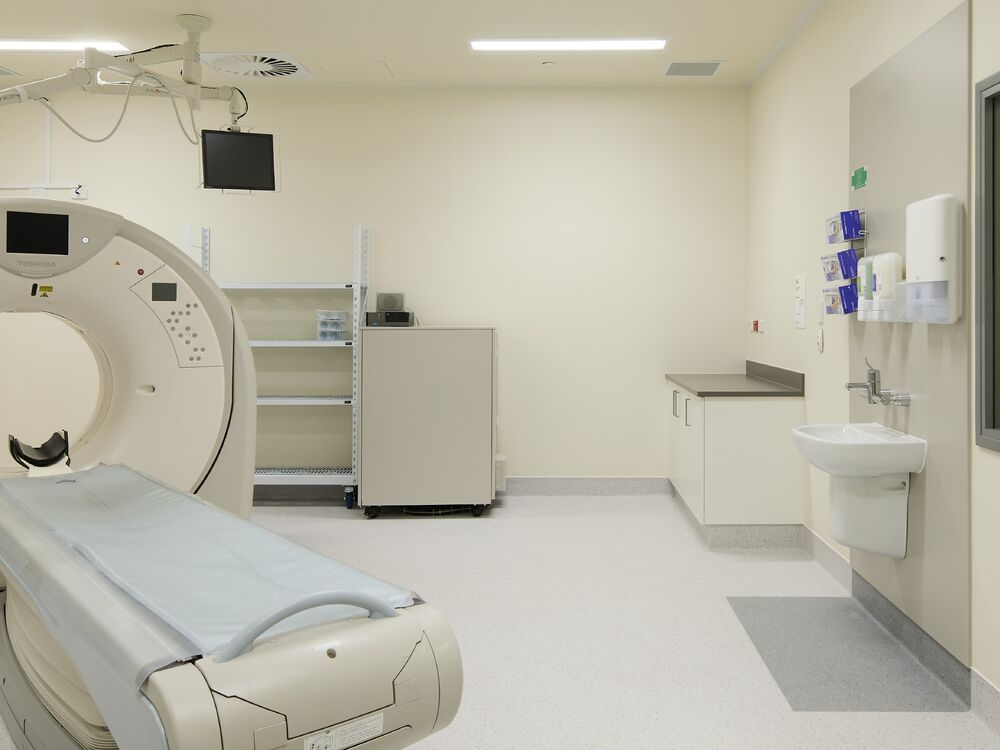

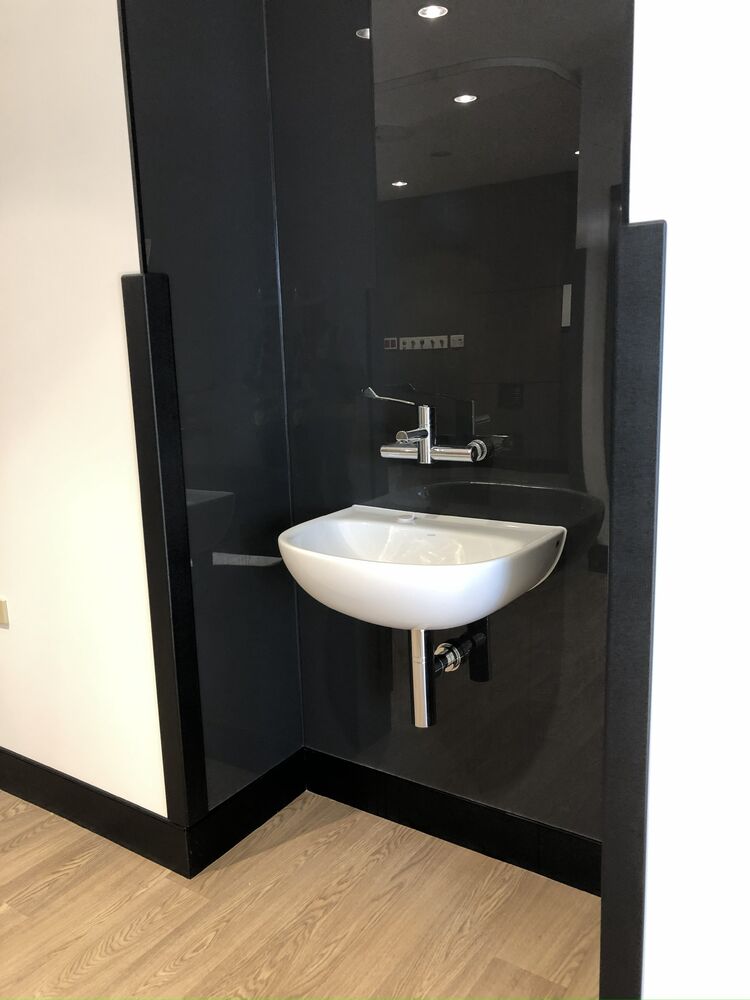

Our Australian Made handsfree Galvin CliniMix^® Lead Safe™ Wall Mounted Thermostatic Progressive Basin Mixer with Proximity Sensor. This new design is suitable for medical or nursing procedures, providing state-of-the-art features to comply with the latest healthcare requirements. The CliniMix^® Progressive Thermostatic Mixing Valve with proximity sensor will activate when the user's hands are in the set detection area and will operate for the period the user's hands are in that area. Suitable for high and low-pressure systems, it can set to deliver a thermostatically controlled water temperature of 48ºC maximum. Robust and reliable, our CliniMix^® Lead Safe™  thermostatic progressive basin mixer is water conserving and cost-effective.

Features

• Manufactured using Lead Safe™ DZR Brass with less than 0.25% lead content*
• Unique thermal disinfection bypass feature
• Enables the water to be mixed closer to the point of discharge. This minimises warm water becoming stagnant which can provide an ideal condition for Legionella bacteria to grow
• Smooth internal and external components to decrease dirt build-up
• The long lever sequential control handle is easy to access for users and provides more precise control of temperature
• Water flow always starts from cold for safe usage
• Fast and easy to clean
• All servicing and commissioning can be done without removing the device
• Easy to access isolators helps to minimise the time of commissioning and maintenance
• Designed to provide stable mixed temperature and rapid shut down in the event of cold or hot water supply failure

Technical Information

• Nominal Flow Rate (LPM): 8
• WaterMark: AS 4032.4 Lic. WMKA21989
• Inlet: 1/2" BSP - Female
• Outlet: Flow Straightener
• Headwork: Thermostatic Mixing Valve (TMV)
• Working Pressure Range (kPa): 20 Min - 500 Max
• Supply Temperature Range (°C): 5 Min - 85 Max
• Minimum Temp. Differential (Between Supply and Outlet Temp.) (°C): 10
• Permitted Supply Pressure Variation: 10:1
• Factory Set Thermostatic Temperature (°C): 41
• Maximum Thermostatic Temperature (°C): 48
• Minimum Flow Rate for Stable Outlet Temp. (LPM): 6
• Construction: Lead Safe™ DZR Brass*
• Finish: Chrome
