Specification Data Sheet

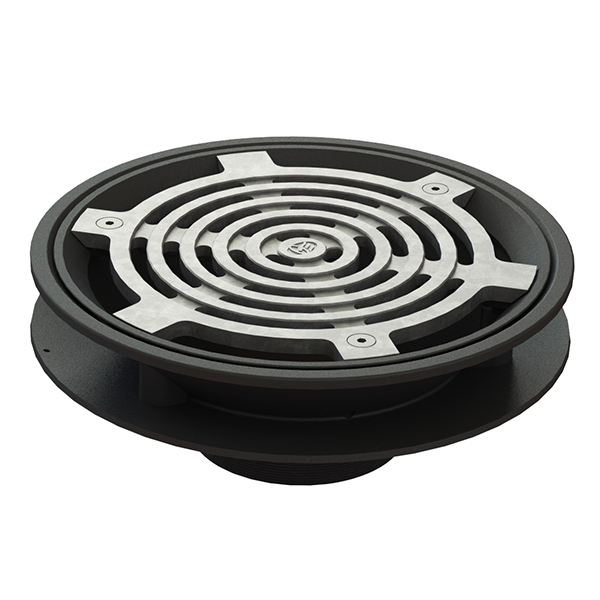

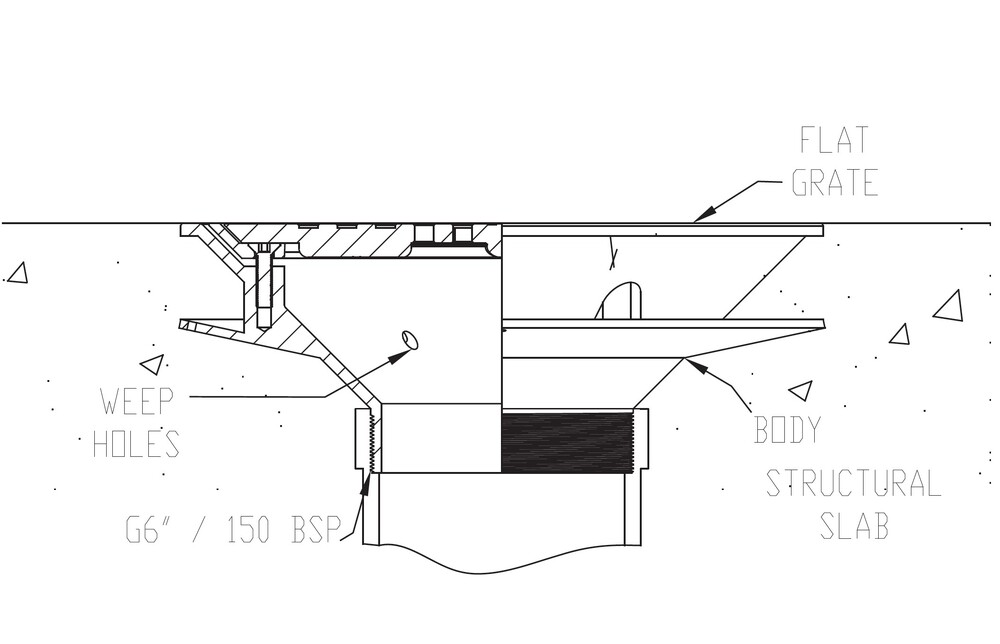

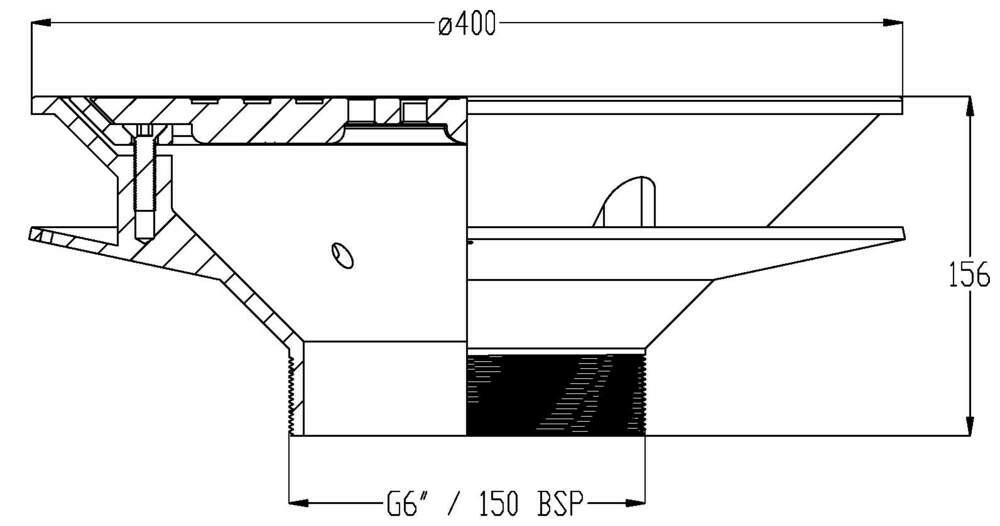

Ductile iron grey enamel coated rain water drain with built in puddle flange and galvanised ductile iron flat grate, clamp ring and lock down screws.

Features

  • Removable grate for ease of access, without disturbing the puddle flange and clamp ring
  • Roof drain body suits our standard PVC/HDPE adjustable adaptor
  • Large open area of the grate permits unrestricted water flow
  • Ductile iron grate as per 150 1083/55/500-7/J to AS 1831
  • Certified by the AHSCA Research Foundation

Flow Rate Guide (litre/min)

Pressure Head mm of Water
10mm 20mm 30mm 40mm 50mm
150 345 600 900 1200

Spare Parts

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
