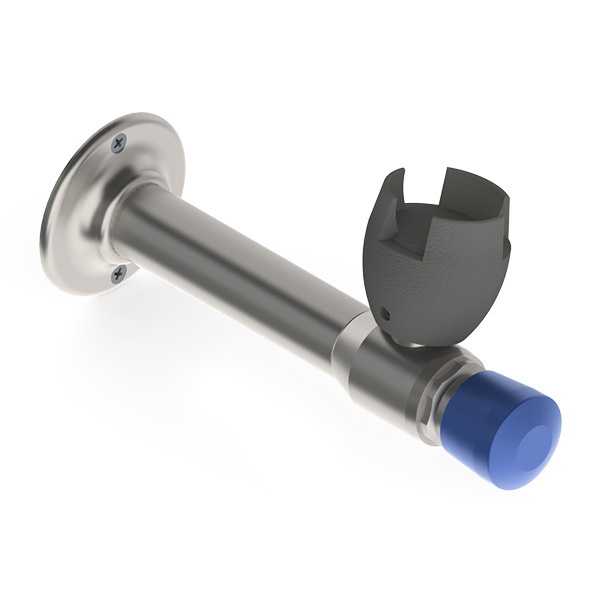

The Galvin Ezy-Drink® 316 Stainless Steel Lead Safe™ Horizontal Push Button Drinking Bubbler Tap is ideal for use in playgrounds, schoolyards and public areas drinking troughs. Robust and reliable, our Ezy-Drink® 316 Stainless Steel Lead Safe™ Horizontal Push Button Drinking Bubbler Tap is water conserving and cost-effective. Stainless steel material is completely free of lead as no lead is used in its production.

Our range of commercial grade drinking bubblers are perfectly suited to:

  • Schools & Early learning facilities
  • Public washrooms and areas of high use
  • Sporting grounds and Stadiums
  • End of trip facilities
  • Beach Front areas

Features

  • 316 stainless steel construction
  • A unique rubber mouthguard has been specially designed to protect teeth in the rough and tough environment of the schoolyard and playground
  • The mouthguard is made from a nitrile compound which is AS 4020 approved and has a high resistance to fungal and bacterial attack
  • The rubber compound used has a high degree of saturation to ensure the unit has a greater resistance to sunlight and environmental ageing and therefore a long life in the field
  • Vandal resistant design
  • Inbuilt adjustment for consistency of water flow
  • Easy to use self-closing mechanism
  • Australian Made; therefore spare parts and support are available locally, reducing costs of down time on maintenance

Technical Information

  • WELS: 6 Star Rating (2.0L/min)
  • Nominal Flow Rate (LPM): 1.7
  • WaterMark: AS/NZS 3718 Lic. WMKA0034
  • Inlet: 1/2" BSP - Female
  • Outlet: Rubber Mouthguard
  • Headwork: Push Button
  • Working Pressure Range (kPa): 50 Min - 500 Max
  • Working Temperature Range (°C): 5 Min - 60 Max
  • Construction: 316 Stainless Steel
  • Finish: Satin Stainless Steel

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.

Our Lead Safe™ product range is compliant with the Lead Free Requirements of the NCC 2022 Vol. Three, Clause A5G4(2) and NSF/ANSI 372.
