Specification Data Sheet

Our range of Galvin Ezy-Wash® Pre-Rinse units are perfect for commercial kitchens, restaurants and cafes. Featuring an ergonomic trigger handle for easy operation and built with a heavy-duty design, they ensure durability and efficiency in the toughest environments.

Features

  • Commercial grade quality and fully backed by our industrial warranty
  • Support spring in chrome plated steel allows the trigger hose to be pulled into the spraying position and returned back to the washing area when released
  • Stylish pin flick mixer that is compact and easy to use
  • Easy to assemble and adjustable wall bracket
  • Flexible hose TPU inner
  • High quality chrome finish for easy cleaning and hygiene maintenance
  • Australian Made; therefore, spare parts and support are available locally, reducing costs of down time on maintenance

Note: Suitable for installation over commercial pot sinks.

Technical Information

  • Trigger Spray:
    WELS: 6 Star Rating (4.5L/min)
    Nominal Flow Rate (LPM): 3.4
  • Second Outlet:
    Nominal Flow Rate (LPM): 14.6
    WELS: 0 Star Rating (15L/min)
  • WaterMark: AS/NZS 3718 Lic. WMKA0034
  • Inlet:  G ½” – Female Flexi Tail
  • Outlet: Trigger Spray & Pot Filler
  • Headworks: Ceramic Cartridge / Jumper Valve
  • Working Pressure Range (kPa): 100 Min - 500 Max
  • Working Temperature Range (°C): 5 Min - 65 Max
  • Construction: Lead Safe™ DZR Brass*
  • Finish: Chrome

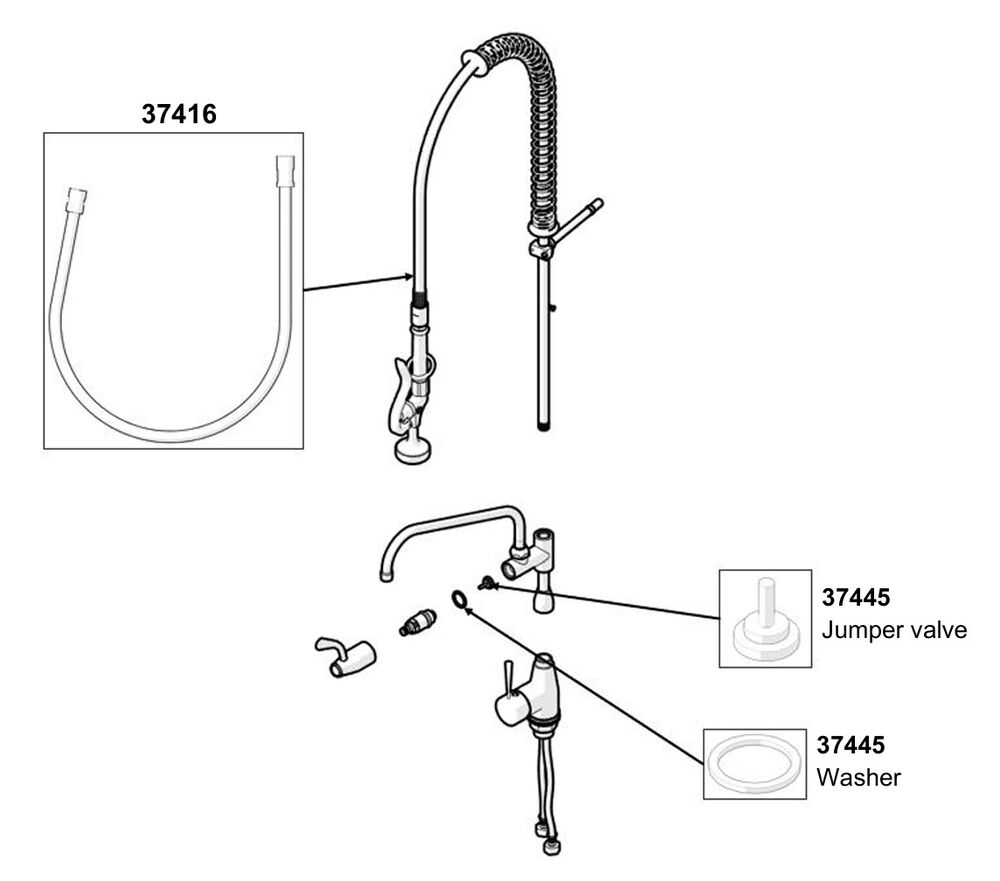

Spare Parts

  • 181.91.32.02 Ezy-Wash® CP Lead Safe™ Pot Filler Attachment Type 150 J/V 305mm Reach

Alternative Product Options

  • 181.00.33.00 Ezy-Wash CP-BS Lead Safe™ Hob Mtd Exposed Mixing Pre-Rinse Unit Type 83 MI Inlet - Standard

Superseding Products

  • TF150HMP Ezy-Wash® CP-BS Hob Mtd Single Lever Mixer Pre-Rinse Unit Type 150 Flex Tail - Pot Filler

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.

Our Lead Safe™ product range is compliant with the Lead Free Requirements of the NCC 2022 Vol. Three, Clause A5G4(2) and NSF/ANSI 372.
