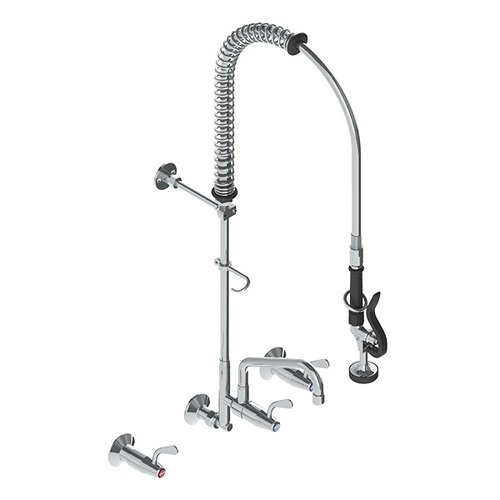

Our range of Galvin Ezy-Wash® Pre-Rinse units are perfect for commercial kitchens, restaurants and cafes. Featuring an ergonomic trigger handle for easy operation and built with a heavy-duty design, they ensure durability and efficiency in the toughest environments.
Kit Inclusions
Note: Items are packed separately.
Features
- 825mm long high pressure hose with swivel ends
- Stainless steel spring
- Ergonomic trigger hand spray
- Bright chrome plate finish for easy cleaning and added durability
- Additional 250mm pot filler with 80mm lever control tap handle
- Australian Made; therefore, spare parts and support are available locally, reducing costs of down time on maintenance
Note: Suitable for installation over commercial pot sinks.
Technical Information
- Trigger Spray:
WELS: 6 Star Rating (4.5L/min)
Nominal Flow Rate (LPM): 3.4
- Second Outlet:
WELS: 0 Star Rating (15L/min)
Nominal Flow Rate (LPM): 14.6
- WaterMark: AS/NZS 3718 Lic. WMKA0034
- Inlet: G ½” - Female
- Outlet: Trigger Spray
- Headwork: Jumper Valve
- Working Pressure Range (kPa): 100 Min - 500 Max
- Working Temperature Range (°C): 5 Min - 65 Max
- Construction: Brass
- Finish: Chrome
Features
- ¼ turn contra rotation jumper valves
- Our highly sought after lever handle design can easily be operated with wrists or elbows
- Quick action sub-assemblies include brass jumper valve with red and blue indicator buttons on 80mm lever action handles
Technical Information
- WaterMark: AS/NZS 3718 Lic. WMKA0034
- Inlet: 5/8" BSP - Male
- Headwork: Jumper Valve
- Working Pressure Range (kPa): 50 Min - 500 Max
- Working Temperature Range (°C): 5 Min - 65 Max
- Construction: Lead Safe™ DZR Brass
- Finish: Chrome
Features
- ¼ turn contra rotation jumper valves
- Our highly sought after lever handle design can easily be operated with wrists or elbows
- Quick action sub-assemblies include brass jumper valve with red and blue indicator buttons on 80mm lever action handles
Technical Information
- WaterMark: AS/NZS 3718 Lic. WMKA0034
- Inlet: 5/8" BSP - Male
- Headwork: Jumper Valve
- Working Pressure Range (kPa): 50 Min - 500 Max
- Working Temperature Range (°C): 5 Min - 65 Max
- Construction: Lead Safe™ DZR Brass
- Finish: Chrome
Our Lead Safe™ product range is compliant with the Lead Free Requirements of the NCC 2022 Vol. Three, Clause A5G4(2) and NSF/ANSI 372.
Alternative Products Options
- 181.10.37.00 Ezy-Wash® CP-BS Lead Safe™ Wall Mtd Concealed Mixing Pre-Rinse Unit Type 82 Wall Tap - Standard
- 181.10.37.03 Ezy-Wash® CP-BS Lead Safe™ Wall Mtd Concealed Mixing Pre-Rinse Unit Type 82W Wall Tap - Pot Filler
Superseding Products
- TF82WJP-W Ezy-Wash® CP-BS Wall Mtd Conc Mixing Pre-Rinse Unit Type 82 Wall Tap - Pot Filler - Super
Spare Parts
- 181.60.00.01 Ezy-Wash® CP-BS Lead Safe™ Lever Action Pre-Rinse Wall Top Assembly Type 60 J/V - Cold
- 181.17.05.04 Ezy-Wash® CP-BS Lead Safe™ Wall Mtd No Stop Pre-Rinse Unit Type 80 FI Inlet - Pot Filler (Woolies)
- 181.60.00.02 Ezy-Wash® CP-BS Lead Safe™ Lever Action Pre-Rinse Wall Top Assembly Type 60 J/V - Hot
