Specification Data Sheet

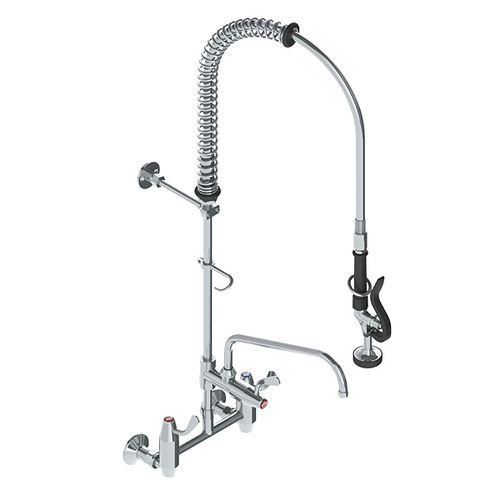

Ezy-Wash® CP-BS Lead Safe™ Wall Mtd Exposed Mixing Pre-Rinse Unit Type 83 FI - Pot Filler

Product Code: 181.10.38.03

Our range of Galvin Ezy-Wash® Pre-Rinse units are perfect for commercial kitchens, restaurants and cafes. Featuring an ergonomic trigger handle for easy operation and built with a heavy-duty design, they ensure durability and efficiency in the toughest environments.

Features

  • ¼ turn jumper valve hot and cold control taps with 100mm levers
  • 1000mm long high pressure hose with swivel ends
  • Ergonomic trigger hand spray
  • Bright chrome plate finish for easy cleaning and added durability
  • 250mm pot filler with 80mm lever control tap
  • Australian Made; therefore, spare parts and support are available locally, reducing costs of down time on maintenance

Note: Suitable for installation over commercial pot sinks.

Technical Information

  • WELS: 6 Star Rating (3.5L/min)
  • Nominal Flow Rate (LPM): 3.4
  • WaterMark: AS/NZS 3718 Lic. WMKA0034
  • Inlet: G ½” - Female
  • Outlet: Trigger Spray and Pot Filler
  • Headwork: Jumper Valve
  • Working Pressure Range (kPa): 100 Min - 500 Max
  • Working Temperature Range (°C): 5 Min - 65 Max
  • Construction: Lead Safe™ DZR Brass
  • Finish: Chrome

Kit Inclusions

Note: Items are packed separately.

181.10.38.00 - Ezy-Wash® CP-BS Lead Safe™ Wall Mtd Exposed Mixing Pre-Rinse Unit Type 83 FI - Standard

Features

  • ¼ turn jumper valve hot and cold control taps with 100mm levers
  • 1000mm long high pressure hose with swivel ends
  • Trigger hand spray
  • High quality chrome finish for easy cleaning and hygiene maintenance
  • Australian Made; therefore, spare parts and support are available locally, reducing costs of down time on maintenance

Technical Information

  • WELS: 6 Star Rating (3.5L/min)
  • Nominal Flow Rate (LPM): 3.4
  • WaterMark: AS/NZS 3718 Lic. WMKA0034
  • Inlet: G ½” - Female
  • Outlet: Trigger Spray
  • Headworks: Jumper Valve
  • Working Pressure Range (kPa): 100 Min - 500 Max
  • Maximum Working Temperature (°C): 5 Min - 65 Max
  • Construction: Lead Safe™ DZR Brass
  • Finish: Chrome
Visit Product Page > Ezy-Wash® CP-BS Lead Safe™ Wall Mtd Exposed Mixing Pre-Rinse Unit Type 83 FI - Standard

181.91.31.02 - Ezy-Wash® CP Lead Safe™ Pot Filler Attachment Type 100 J/V 305mm Reach

Features

  • Suitable for installation with Ezy-Wash®  Pre-Rinse Units
  • Bright chrome plate finish for easy cleaning and added durability
  • 305mm reach pot filler with 100mm lever control tap
  • Australian Made; therefore, spare parts and support are available locally, reducing costs of down time on maintenance

Technical Information

  • WaterMark: AS/NZS 3718 Lic. WMKA0034
  • Inlet: 3/8” NPT
  • Outlet: Aerator
  • Headworks: Jumper Valve
  • Working Pressure Range (kPa): 100 Min - 500 Max
  • Maximum Working Temperature (°C): 5 Min - 65 Max
  • Construction: Lead Safe™ DZR Brass*
  • Finish: Chrome
Visit Product Page > Ezy-Wash® CP Lead Safe™ Pot Filler Attachment Type 100 J/V 305mm Reach

Alternative Product Options

  • 181.10.38.00 Ezy-Wash® CP-BS Lead Safe™ Wall Mtd Exposed Mixing Pre-Rinse Unit Type 83 FI - Standard

Superseding Products

  • TF83WJPEzy-Wash® CP-BS Wall Mtd Exposed Mixing Pre-Rinse Unit Type 83 FI - Pot Filler

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.

Our Lead Safe™ product range is compliant with the Lead Free Requirements of the NCC 2022 Vol. Three, Clause A5G4(2) and NSF/ANSI 372.
