Specification Data Sheet

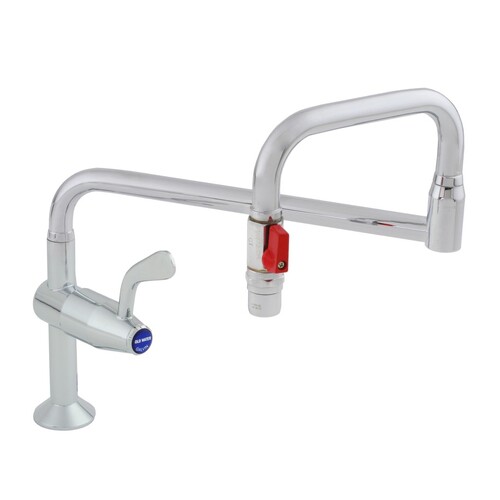

The Galvin Specialised Ezy-Wash® Hob Mounted Pot & Kettle Filler is supplied standard with a double swivel aerated outlet, 80mm lever handle and a bright chrome plated finish.

Features

  • Multiple swivel points for easily manoeuvring
  • Lever action handle for ease of use
  • Smooth round design to facilitate easy cleaning and to help reduce dirt and bacterial growth
  • High quality chrome finish for easy cleaning and hygiene maintenance
  • Australian Made; therefore, spare parts and support are available locally, reducing costs of down time on maintenance

Note: Suitable for installation over commercial pot sinks.

Technical Information

  •  WaterMark: AS/NZS 3718 Lic. WMKA0034
  •  Inlet: 1/2” BSP - Male
  •  Outlet: Aerator
  •  Headworks: Ceramic Disc
  •  Working Pressure Range (kPa): 50 Min - 500 Max
  •  Working Temperature Range (°C): 5 Min - 90 Max
  •  Construction: Brass
  •  Finish: Chrome

Alternative Product Options

  • 181.04.10.01 Ezy-Wash® CP-BS Lead Safe™ Hob Mtd Pot & Kettle Filler Unit Type 70H with Folding Outlet & Stop

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
