Specification Data Sheet

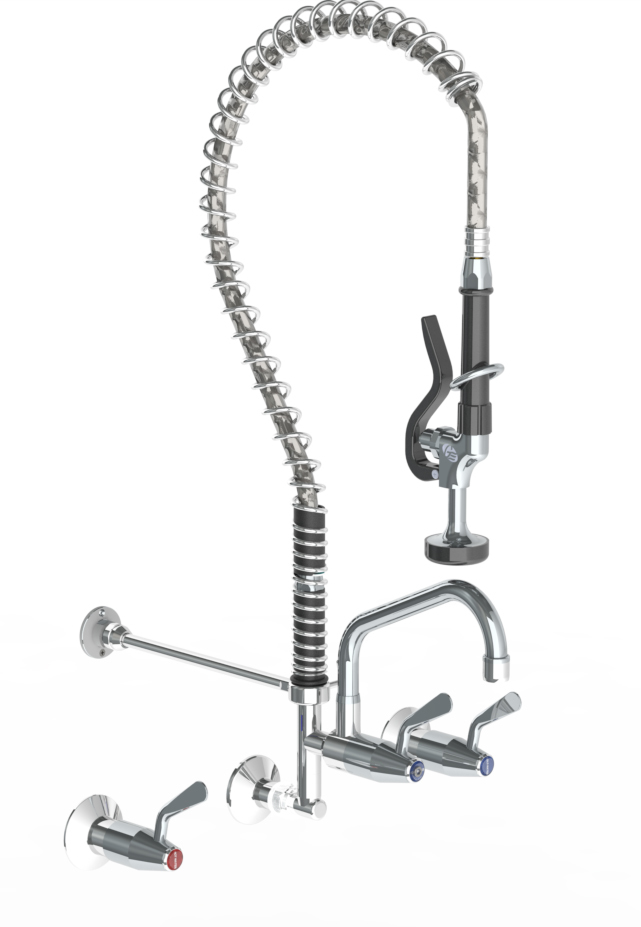

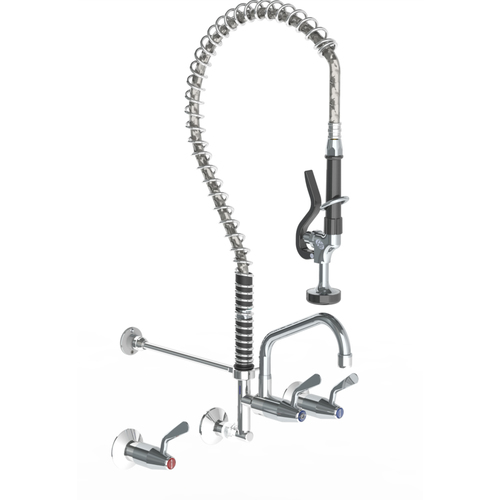

Our range of Ezy-Wash® Pre-Rinse units are designed to clear excess food debris and sauces off dishes before placing them in commercial dishwashers. Featuring an ergonomic trigger handle which allows easy and intuitive use. Our robust food service range complies with relevant standards and has been tested for cleanability to ASTM F2324-03 at 21.46 seconds. The heavy duty design makes it ideal for installation in all types of applications.

Features

  • 825mm long high pressure hose with swivel ends
  • Stainless steel spring
  • Trigger hand spray
  • Bright chrome plate finish for easy cleaning and added durability
  • ¼ turn jumper valve hot and cold concealed tap assemblies with 80mm levers
  • 250mm pot filler with 80mm lever control tap
  • Australian Made; therefore, spare parts and support are available locally, reducing costs of down time on maintenance

Note: Suitable for installation over commercial pot sinks.

Technical Information

  • Trigger Spray:
    WELS: 6 Star Rating (4.5L/min)
    Nominal Flow Rate (LPM): 3.4
  • Second Outlet:
    WELS: 0 Star Rating (15L/min)
    Nominal Flow Rate (LPM): 14.6
  • WaterMark: AS/NZS 3718 Lic. WMKA0034
  • Inlet: 1/2" BSP Male
  • Outlet: Trigger Spray
  • Headwork: Jumper Valve
  • Working Pressure Range (kPa): 100 Min - 500 Max
  • Working Temperature Range (°C): 5 Min - 65 Max
  • Construction: DZR Brass
  • Finish: Chrome

Alternative Product Options

  • TF82WJP Ezy-Wash® CP-BS Wall Mtd Concealed Mixing Pre-Rinse Unit Type 82 Wall Tap - Pot Filler
  • TF82WJS Ezy-Wash® CP-BS Wall Mtd Concealed Mixing Pre-Rinse Unit Type 82 Wall Tap - Standard
  • 181.10.37.04 Ezy-Wash® CP-BS Lead Safe™ Wall Mtd Concealed Mixing Pre-Rinse Unit Type 82 Wall Tap - Pot Filler (Super)

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
