Specification Data Sheet

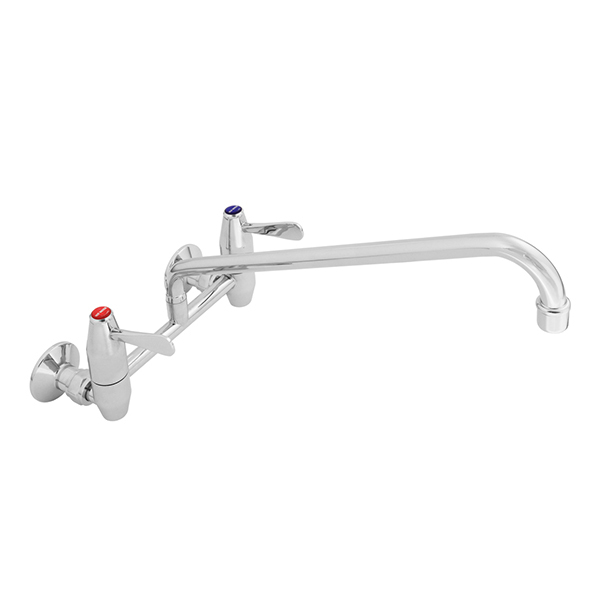

The Galvin Specialised Ezy-Wash® Wall Mounted Exposed Mixing Unit complies to AS 6400 and is supplied standard with a swivel aerated upswept outlet, 80mm lever handle and a bright chrome plated finish.

Features

  • Lever action handles with red and blue indicator buttons (yellow available on request)
  • Quick action Hydroseal jumper valve SBA’s
  • 400mm reach swivel spout with aerator
  • High quality chrome finish for easy cleaning and hygiene maintenance
  • Australian Made; therefore, spare parts and support are available locally, reducing costs of down time on maintenance

Technical Information

  • WELS: 3 Star Rating (8.5L/min)
  • Nominal Flow Rate (LPM): 8.33
  • WaterMark: AS/NZS 3718 Lic. WMKA0034
  • Inlet: 1/2” BSP - Female
  • Outlet: Aerator
  • Headworks: Jumper Valve/Ceramic Cartridge
  • Working Pressure Range (kPa): 100 Min - 500 Max
  • Working Temperature Range – Jumper Valve (°C): 5 Min – 80 Max
  • Working Temperature Range – Ceramic Disc (°C): 5 Min - 90 Max
  • Construction: Brass
  • Finish: Chrome

Alternative Product Options

  • 181.13.73.00 Ezy-Wash CP-BS Lead Safe™ Wall Mtd Exp Mixing Unit Type 77 FI Inlet with 400 Reach

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
