Specification Data Sheet

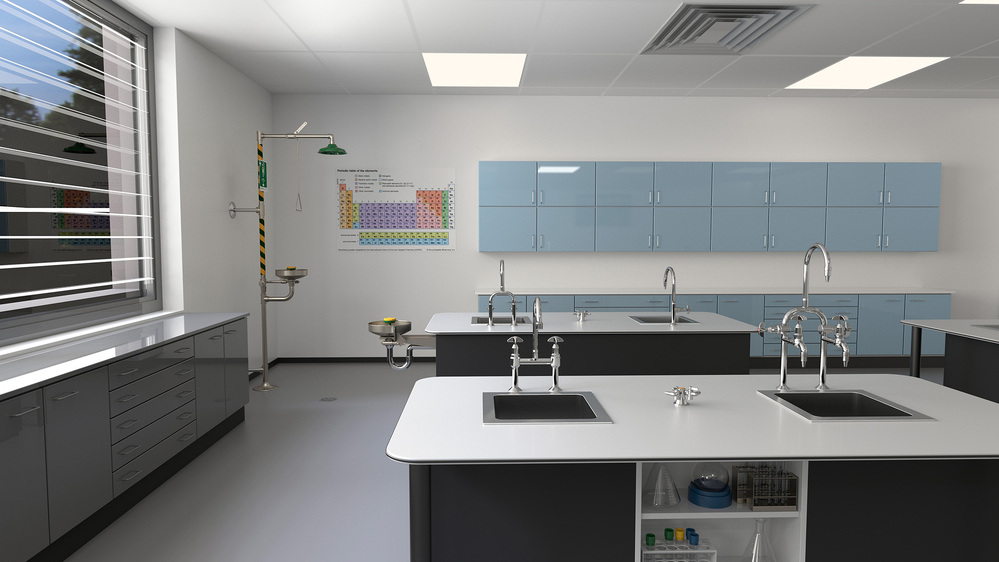

The GalvinLab®  range of school laboratory tapware offers great performance, durability, and flexibility while aesthetically pleasing. It is designed specifically to handle the knocks and hazardous chemicals present in a laboratory environment.

Features

  • Left hand activation
  • Built in dual check valve
  • Tough vandal-resistant handle that has a unique locking system
  • Complies with NSW Education EFSG Guidelines
  • High quality chrome finish for easy cleaning and hygiene maintenance
  • Manufactured using Lead Safe™ DZR Brass with less than 0.25% lead content
  • Australian Made, therefore, spare parts and support are available locally, reducing costs of down time on maintenance
  • Dual WELS Rating (6 and 5 Star Rating)

Note: This product is registered via WELS with two performance ratings to ensure its suitability across a diverse array of applications. Installed in the product is the 6 Star Rating flow regulator for optimal performance. For added flexibility, the additional flow regulator is also provided within the carton. You can easily switch between regulators as needed, all while preserving the product's WELS certification. Refer to the installation instructions for a comprehensive guide on changing the flow regulator.

Technical Information

  • WELS: 6 Star (4.5L/min) or 5 Star Rating (5L/min)
  • Nominal Flow Rate (LPM): 4.49 or 5.49
  • WaterMark: AS/NZS 3718 Lic. WMKA0034
  • Inlet: G ½” - Mal
  • Outlet: Tube Nozzle
  • Headwork: Jumper Valve
  • Working Pressure Range (kPa): 50 Min - 500 Max
  • Working Temperature Range (°C): 5 Min - 65 Max
  • Construction: Lead Safe™ DZR Brass
  • Finish: Chrome

Superseding Products

  • TL16.DFJ16CL GalvinLab® CP-BS Lab Set 1-Way Type 16 Fixed J/V Tube Nozzle - LH

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.

Our Lead Safe™ product range is compliant with the Lead Free Requirements of the NCC 2022 Vol. Three, Clause A5G4(2) and NSF/ANSI 372.
