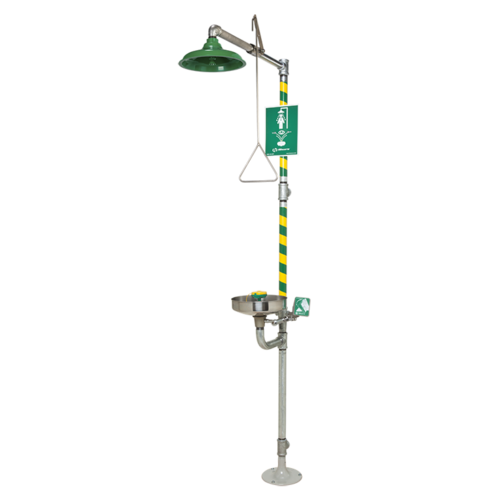

GalvinSafe® combination shower and eye/face wash shall include an 279mm round bowl, an AXION® MSR ABS eye/face wash head that supplies an inverted directional laminar flow which achieves Zero Vertical Velocity™ supplied by an integral 14 lpm flow control. Unit shall also include the AXION® MSR hydrodynamic design showerhead with 75.7lpm flow control, eyewash dust cover, stainless steel 50 x 50 mesh water strainer, and type 316 stainless steel stay-open shower and eyewash ball valves equipped with stainless steel ball and stem. Unit shall also include a cast 229mm diameter floor flange, universal sign, self-adhesive high visibility safety green and bright yellow stripes 1-1/4" BSPT(M) supply and waste.
Product complies with AS 4775.
>> See here for important considerations for Specification and Installation
>> Learn more about how the GalvinSafe® Haws® AXION® MSR safety equipment works
CONSTRUCTION
1-1/4" type 304 stainless steel pipe and fittings along with powder coated cast Iron 229mm diameter floor flange provide a superior defense in a highly corrosive environment.
QUALITY CONTROL
Eye/face wash and valve assembly are pre-built and fully water/pressure tested to ensure no leaks and proper function which ultimately reduces installation time.
BOWL
The 279mm round stainless steel receptor is supplied with a No. 2L bright finish on its exterior
VALVES
Eye/face wash valve is designed to make the flushing of contaminants occur with the simple push of a stainless steel flag. Shower ball valve is designed to make the flushing of fluid occur with the pull of a triangular lever. Both are made of type 316 stainless steel.
STRAINERS/FILTERS
Type 304 stainless steel in-line 50 x 50 mesh water strainer supplies added protection against corrosion and prevents debris from reaching the eye/face wash so it stays functioning at its best. Strainer is easily serviceable. Stainless steel dust cover protects eye/face wash head as well as bowl up until the last second before use further optimising operation.
SHOWERHEAD
AXION® MSR ABS showerhead uses a hydrodynamic design to give equal distribution of water throughout the entire footprint of flow.
EYE/FACE WASH
AXION® MSR eye/face wash head uses an inverted directional laminar flow to sweep contaminants away from the vulnerable nasal cavity.
We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.
Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.
Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.
While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
Our Lead Safe™ product range is compliant with the Lead Free Requirements of the NCC 2022 Vol. Three, Clause A5G4(2) and NSF/ANSI 372.
