Specification Data Sheet

Features

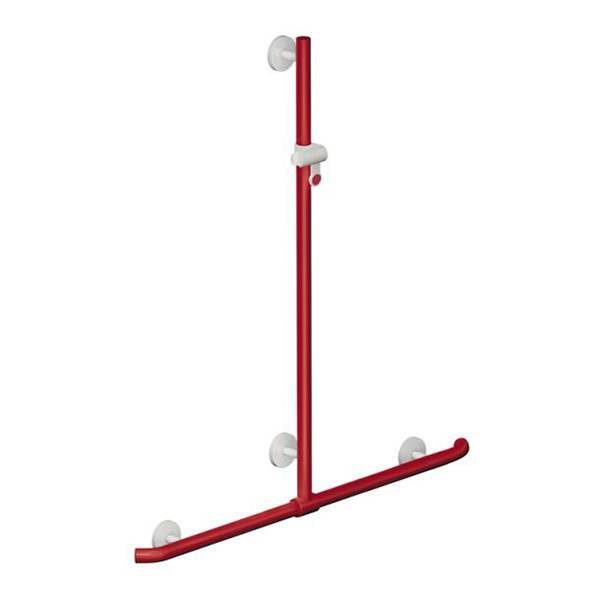

  • Horizontal and vertical bars joined to form a right angle.
  • With 45° end bends facing to the wall on horizontal bar.
  • With continuous, corrosion resistant steel core.
  • With sideways adjustable vertical support bar.

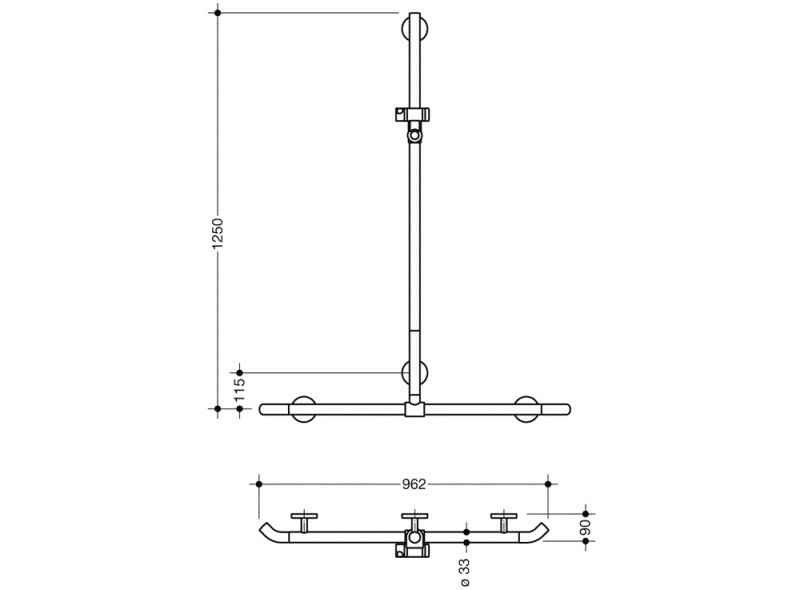

  • Wall connection with filigree supports, perpendicular to wall ø18mm and flat roses ø80mm, 13mm high.
  • ø33mm, 90mm deep.
  • Shower head holder adjustable to required angle and height.
  • Conical adaptor on shower head holder facilitates accommodation of hand spray.
  • Easy installation due to individually mounted fixing roses made of high-quality stainless steel for hanging the rail.
  • Can be mounted in left hand or right hand position.
  • Suitable for HEWI removable hanging seats.
  • Made of high-quality polyamide.
  • Roses, supports and shower head holder pure white.
  • Rails in ruby red.
  • Including non-corrosive HEWI fixing material.

Alternative Product Options

  • 950.33.12099.33 HEWI Dementia Shower Grab Rail with Shower Head Holder 1100mm - White & Ruby Red Rail
  • 950.22.14099.33 HEWI Dementia L-Shaped Support Grab Rail 1000 x 500mm - White & Ruby Red
  • 950.36.14099.33 HEWI Dementia Straight Support Grab Rail 900mm - White & Ruby Red
  • 950.50.13199.33 HEWI Dementia Mobile Folding Hinged Support Rail White with Ruby Red Grab Rail

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
