Specification Data Sheet

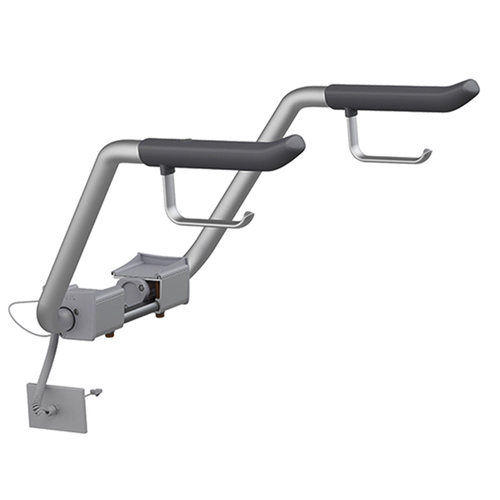

The Pressalit Support Arms provide reliable support for users when sitting down or getting up from the toilet, reducing the risk of falls and injuries. They are suitable for mounting on the Ifo Sign and Ifo Spira toilet.

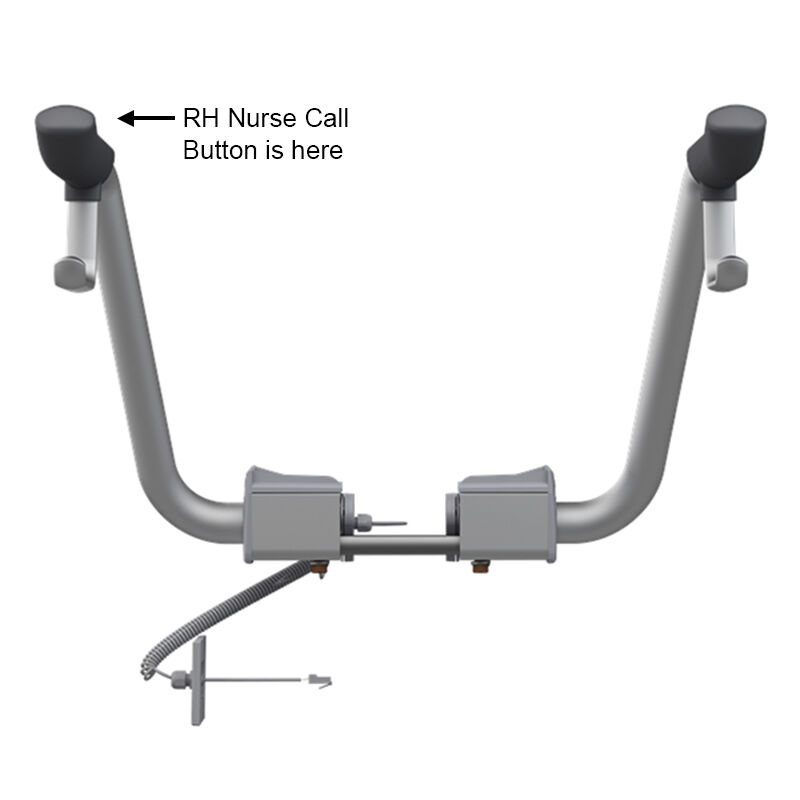

Note: The Nurse Call Button is positioned as per the perspective of the individual sitting on the toilet suite.

Features

  • Includes fixing kit
  • Maximum user weight 150kg. Maximum load per arm support: 75kg
  • Each arm can be folded up and down individually, allowing for easy access and space-saving when not in use

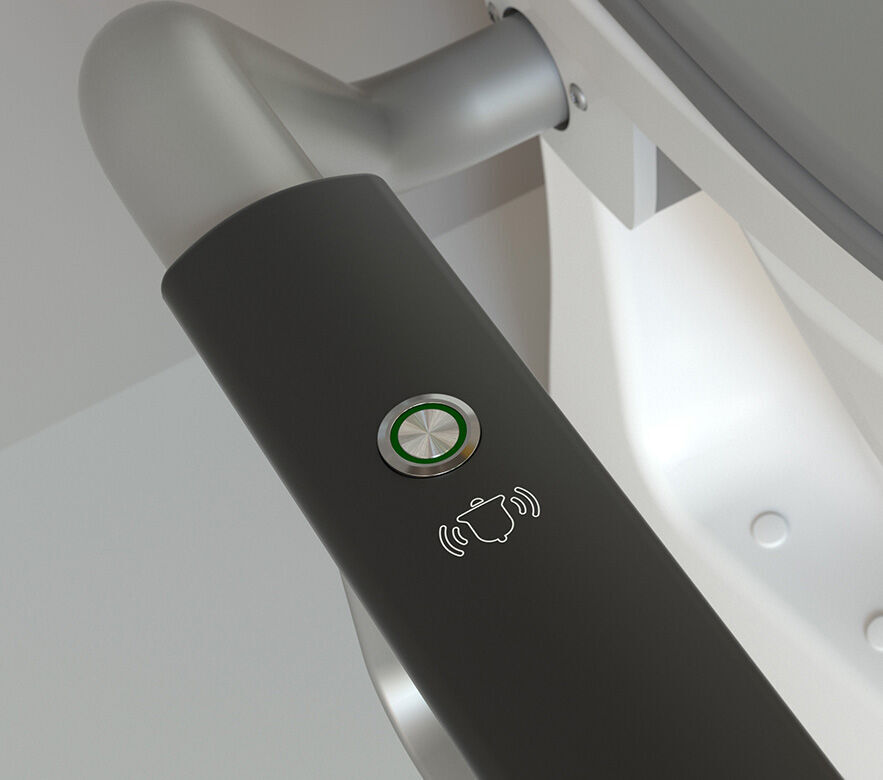

  • The integrated nurse call button ensures that users can easily request assistance when needed
  • The ergonomic design and firm support help users feel more secure and confident in their movements
  • Made from anodised aluminium and ABS, ensuring durability and longevity

Note: The Pressalit Support Arms are only compatible when a Pressalit BD1999 Seat is used in combination with the Ifo Sign or Ifo Spira toilet.

Alternative Product Options

  • R1192112 Pressalit Support Arms with Dual Toilet Roll Holders & No Nurse Call
  • R1194112 Pressalit Support Arms with Dual Toilet Roll Holders & LH Nurse Call

This product is compatible with

  • 687200009 Ifo Sign 6872 Toilet 4.5L / 3L Dual Flush, Raised, P-Trap Outlet - White
  • 626100009 Ifo Spira 6261 Toilet 4.5L / 3L Dual Flush, Rimfree, Raised, S-Trap - White

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
