Specification Data Sheet

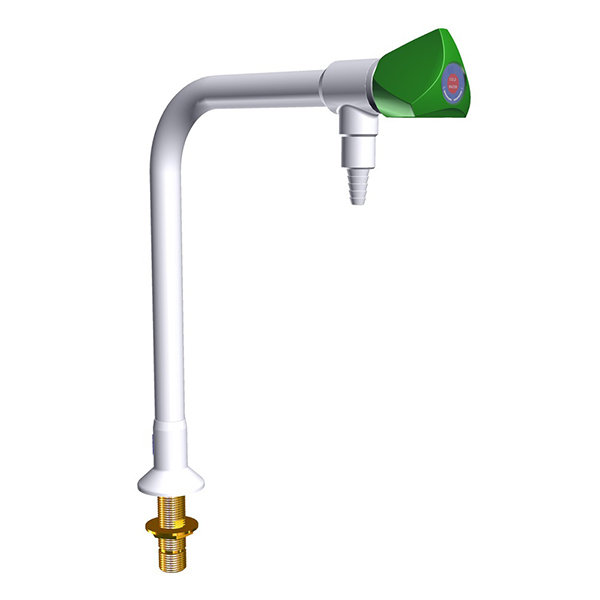

Australian Made AS/NZS 3718 approved, Galvin Specialised ProLab® range of laboratory tapware is supplied standard with fixed outlet, Stirling DIN 13792 approved easy use handle and button, 15mm male BSP inlet and fine control needle valve all finished in white epoxy coat.

Features

  • Vandal resistant fittings are standard which are suitable for both educational and research labs
  • Polyester powder coating provides better chemical UV light and heat resistance than chrome plating
  • Quality controlled - every tap tested

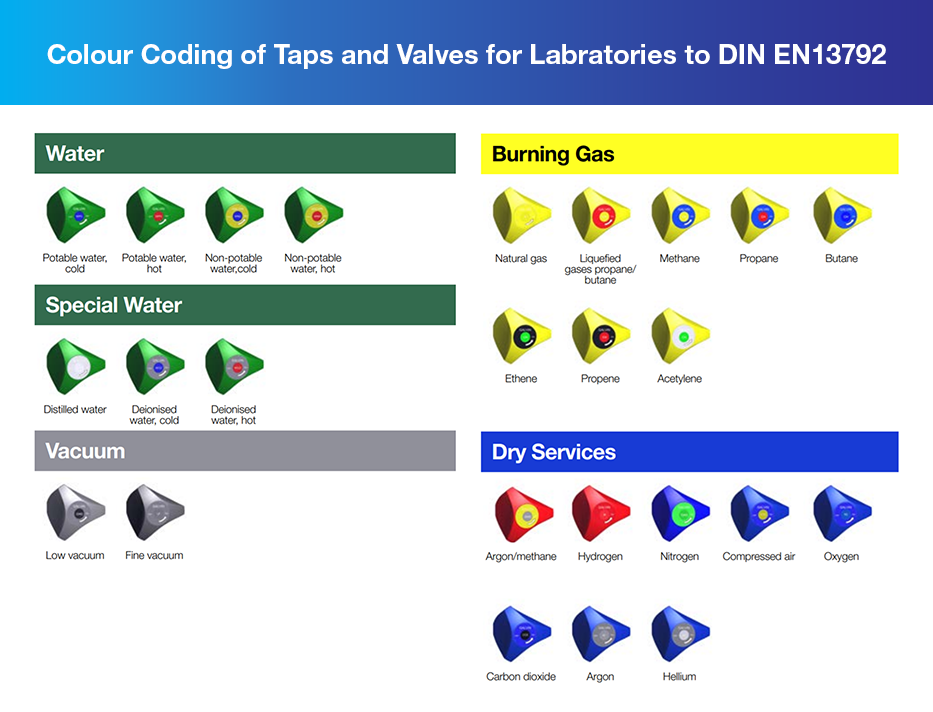

  • Colour coded handles - chemical symbols according to EN 13792 for convenient indication of media
  • Tube nozzles or aerator are available on all water units
  • Replaceable top assemblies are supplied for easy maintenance
  • Specialised needle valve top assemblies give precise flow and regulation
  • Exchangeable nozzles for flexible choice of outlet connection
  • Australian Made; therefore, spare parts and support are available locally, reducing costs of down time on maintenance

Technical Information

  • WELS: 5 Star Rating (6L/min)
  • Nominal Flow Rate (LPM): 5.6
  • WaterMark: AS/NZS 3718 Lic. WMKA0034
  • Handle: Brass, with media indication according to EN13792
  • Spout: Fixed
  • Hose nozzle: Detachable nozzle with a built in approved dual check valve
  • Headwork: Needle Valve
  • Opening/closing function: 3 x 360°
  • Temperature range: 0-90°C
  • Max. Working pressure: 1000 kPa
  • Test pressure: 1.5 x working pressure
  • Inlet connection: 15mm BSP male inlet tail

Alternative Product Options

  • 165.80.21.40 ProLab® EC-BS Lead Safe™ Bench Mtd Lab Set 1-Way Right Angle N/V #16XT Tube Nozzle

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
