Specification Data Sheet

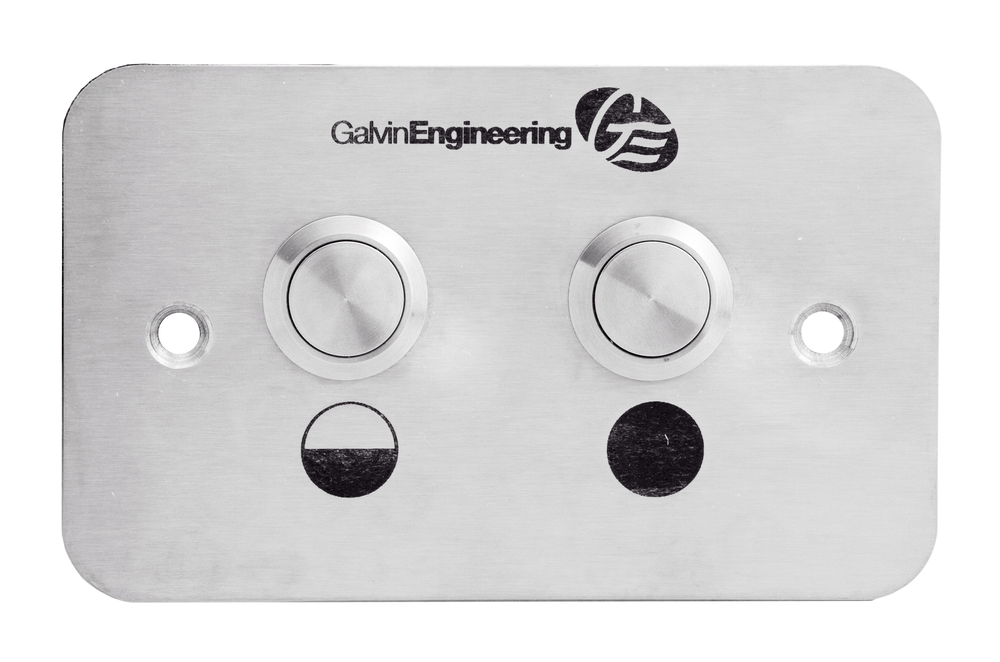

The Galvin Safe-Cell® Electronic Dual Flush Pan Assembly with Controller (Concealed), provides the complete anti-vandal, anti-ligature solution. The unique electronic valve assembly, including the illuminated activation button provide a precise delivery of water, and is specifically designed for prisons, mental health facilities and other custodial establishment.

Features

  • The standard program can be modified to suits individual needs. To modify the operation settings a compatible Android device with Bluetooth is required
  • IP68 rated stainless steel Safe-Cell® switch
  • Attractive and robust fine brushed stainless steel design
  • Solenoid is a high-flow, low-pressure loss control valve.
  • The body and outer casing are made from Nylon and features a stainless steel plunger and nitrile diaphragm
  • All plumbing must comply with AS/NZS3500

Technical Information

  • WELS: 4 Star Rating (3.4L/min)
  • Nominal Flow Rate (LPM): 3.4
  • Full Flush: 4.59
  • Half Flush: 3.09
  • WaterMark AS/NSZ 1172.2 Lic. WMK26456
  • Inlet: 1" BSP - Female
  • Outlet: 2" BSP - Male
  • Headwork: Solenoid
  • Activation: Push Button
  • Working Pressure Range (kPa): 350 (dynamic for 1.5 l/s min) Min - 500 Max
  • Working Temperature Range (°C): 2 Min - 40 Max
  • Finish: Stainless Steel

Alternative Product Options

  • TZ-FLOWTPANMAX Flowmatic® Concealed Inwall Dual Flush Pan Assembly for Mains Power with Controller

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.

In the absence of a legal or industry definition of anti-ligature or ligature resistant products, when we use these terms, we are referring to products that are designed and manufactured with the intention of reducing the risk of ligature attachment to the product(s). Galvin Engineering Pty Ltd will always endeavour to design and test our anti-ligature product(s) to reduce the risk of product ligature attachment that may result in serious injury or death. Whilst all reasonable measures are taken at the time of design, the anti-ligature design of the products are not intended to and will not:
a. Replace protective measures that need to be taken in the specific circumstances of usage;
b. Substitute the need for supervision of those who may be at risk;
c. Protect and or prevent those at risk against any self-harm instances that may occur when installed; and
d. Protect and or prevent injury when the risks where unknown to us at the time of the design of the product(s).
Galvin Engineering Pty Ltd does not offer and does not represent or warrant that any product(s) for sale are ligature-free. Therefore, Galvin Engineering will not be liable for any claims, loss, or damages arising from ligature attachment on our products. It is the purchaser's responsibility to ensure that products purchased and installed are suitable for the environments in which they are installed, and suitable supervision and protective measures are in place to protect those at risk.
