Specification Data Sheet

The Wallgate Pan Front Fixing Kit is suitable for situations where rear fixing is not possible in Wallgate WC Pan installations. This kit enables a secure installation of any Wallgate pan by fixing it to the front of a wall. The kit includes tamper-resistant fixings, offering high levels of security and durability against potential damage.

Note: this kit is suitable for Wallgate WC pan installations only.

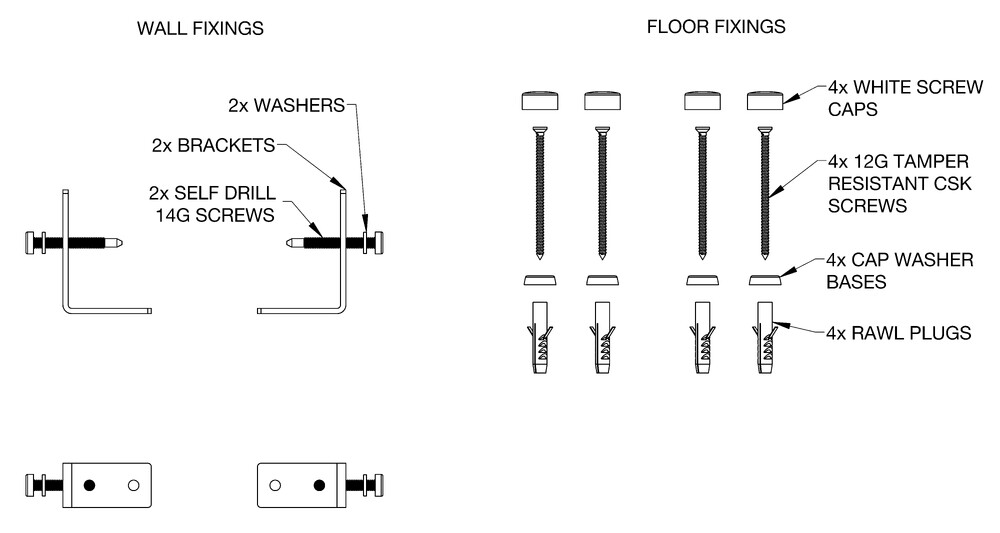

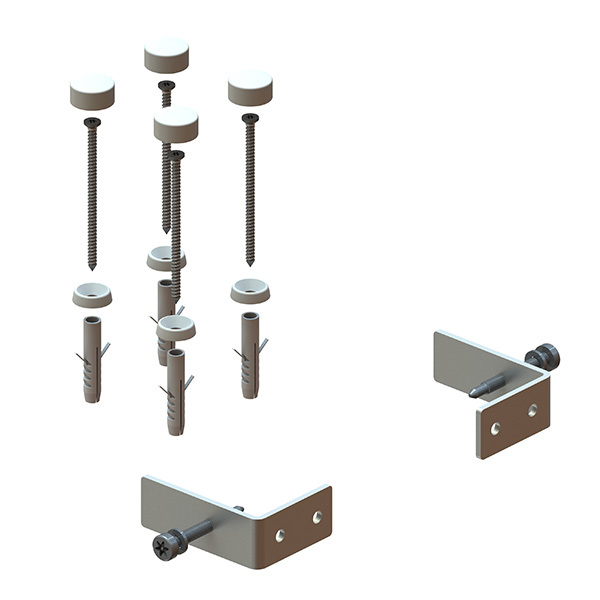

Kit Inclusions

  • 2x Brackets
  • 2x Washers
  • 2x Self Drill 14G Screws
  • 4x White Screw Caps
  • 4x 12G Tamper Resistant CSK Screws
  • 4x Cap Washer Bases
  • 4x RAWL Plugs

Alternative Product Options

This product is compatible with

  • CWC-155W-AST-BCA Wallgate Anti-Ligature, Anti-Vandal Accessible Solid Surface BTW Pan S&P with Grey Integ Seat 460x810 - White
  • CWC-155W-SF-BCA Wallgate Anti-Ligature, Anti-Vandal Solid Surface Accessible Pan - White 440(H) x 810(L) Floor & Seat Fixing
  • CWC-155W-AST-AUS Wallgate Anti-Ligature, Anti-Vandal Solid Surface Back To Wall Pan S&P with Grey Integrated Seat 446x702 - White
  • CWC-156W-AST-NZ Wallgate Anti-Ligature, Anti-Vandal Accessible Solid Surface BTW Pan with Grey Integrated Seat 460 x 750 (NZ) - White

Environmental Sustainability

We are ISO 14001 certified and take sustainability seriously. Our products are environmentally responsible designed to be healthier for users, save water and/or energy, and minimise carbon footprint. Our target is to reduce our carbon footprint by 25%, and the use of non-recyclable/non-compostable materials across the company (e.g. plastics) by 50%.

Warranty

Galvin Engineering products are covered under our Manufacturer's Warranty. Galvin Engineering products must be installed in accordance with the installation instructions and in accordance with AS 3500 and NCC Volume Three, relevant Australian Standards and local authorities applicable to product being installed. Water and electrical supply conditions must also comply to the applicable national and/or state standards, failing to comply with these provisions may void the product warranty and affect performance of the product.

Please visit www.galvinengineering.com.au to view the full warranty, our Installation Compliance and Maintenance & Cleaning information as well as any other additional information.

While all reasonable care has been taken in compiling the information in this document, the designs, dimensions and products shown are indicative only and should not be relied upon without our prior approval. Due to our policy of continuous development, we reserve the right to alter any details of specifications or products without notice. All information, drawings, technical specifications and product designs remain the property of Galvin Engineering Pty Ltd.
